Simply the best horsebox
30 years service and experience
All steel, fully galvanised, non-rusting structure
Excellent towing

      Prices of Sunpacer Horse Boxes
Basic model prices
excl VAT
incl VAT
Two berth Sunpacer Standard
Note 1
R106158 R122082
Two berth Sunpacer Hi Roof
Note 1
R115132 R132402
Two berth Sunpacer Jumbo
Note 1
R126531 R145511
Three berth Sunpacer
Note 1
R135257 R155546


.
Extras
click on links to see photos
Model
Price
excl VAT
Price
incl VAT
Spare wheel 185x14 CV2000
All
R1390 R1599
Soft cover above ramp
All
discontinued discontinued
Hard doors above ramp
2 berth standard
R2278 R2620

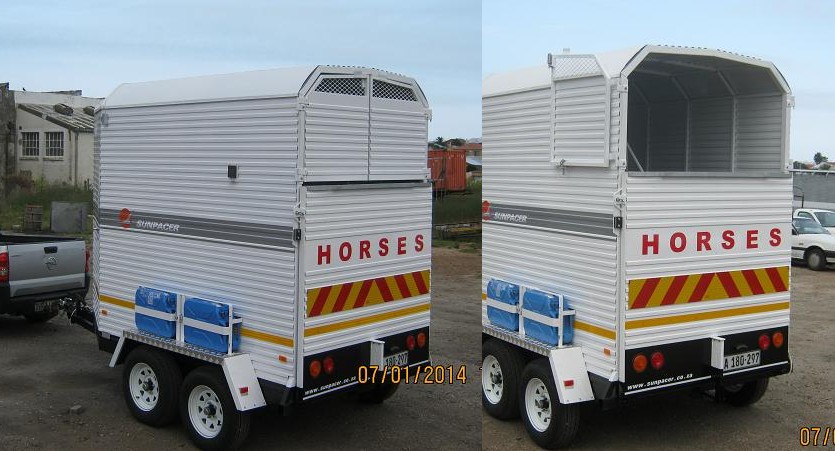

Hard doors above ramp
2 berth hi roof
R2731 R3141
Hard doors above ramp
2 berth jumbo
R3200 R3680
Hard doors above ramp
3 berth
R3342 R3843

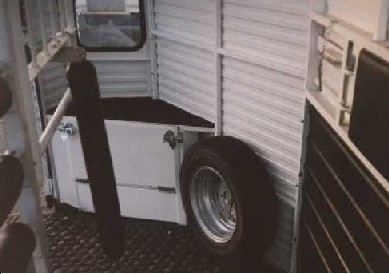

Tac bin under seat lockable Note 4
all
R1657 R1906
Saddle box lockable (two saddles)
all
R5015 R5767
std + hi roof
R1838 R2114
Berthing flaps at rear
jumbo
R2193 R2522
Berthing flaps at rear
3 berth
R2901 R3336

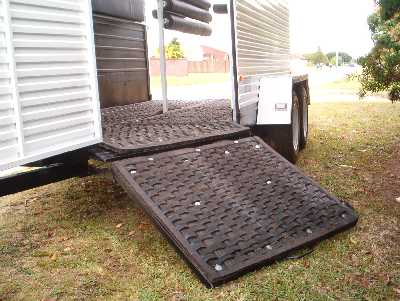

Front unloading arrangement
all 2 berth
R4054 R4662
Front unloading arrangement
3 berth
R4397 R5057
Interior light (power from tow vehicle)
all
R673 R774

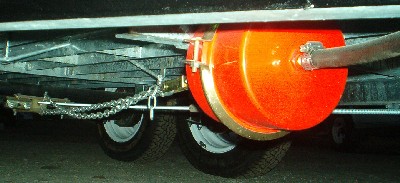

Vacuum brake unit (trailer only) Note 7
all
R3200 SQ R3680 SQ
Vacuum brake full system Note 7
all
R20200 SQ 23230 SQ
Electric brakes full system
See special note below and Notes 7 & 8
Installation of controller for customer account
all
R15631 17976
MAG RIMS MATRIX ET10 or similar (set of 4)
all
R3885 SQ R4468 SQ
Gazebo (budget price)
all
R6500 SQ R7475 SQ
Jerry Can 25L mounted (each)
all
R1495 R1719

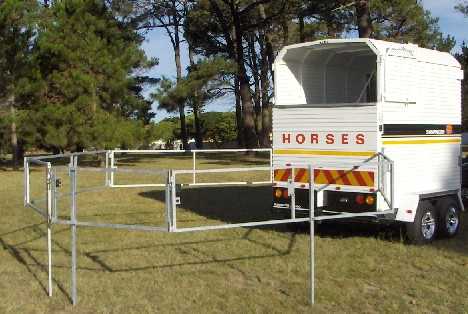

On board fold out paddock (Camp) perimeter 13 meters
all
R8052 R9260

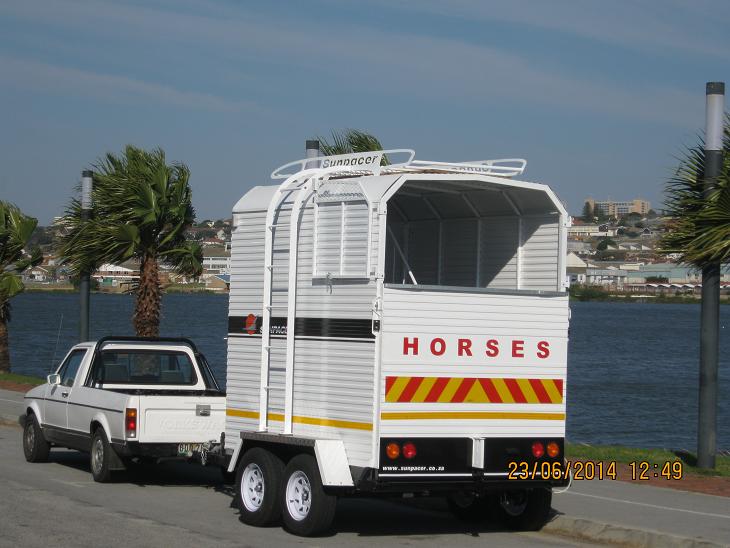

Roof rack with ladder
all
R7589 R8727
Aluminium checker plate on fenders
all
R638 R734
Feature line to colour of your choice example 1 example 2
all
R616 R708

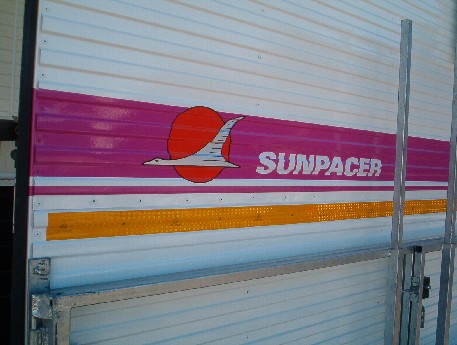

Feature line to colour of your choice (two tone)example 2
all
R880 R1012
colour chart for feature line send code back to us by email
all
Delivery to George / Mosselbay / Colesberg (see note 9)
all
R3455 R3973
Delivery to Bloemfontein (see note 9)
all
R6730 R7740
Delivery to Cape Town (see note 9)
all
R7743 R8904
Delivery to Johannesburg (see note 9)
all
R10974 R12620


Special Note re Brakes and Towing

General Notes

-------------------------------

Note 1 - Galvanising of entire trailer is standard
Note 2 - Stallion bars front/rear standard
Note 3 - Option front berthing chains or bars on request, chains at rear standard
Note 4 - Open Tac bin under groom seat standard
Note 5 - Heavy duty tyres now standard on all trailers
Note 6 - Reflective tape mandatory from 01-01-2006
Note 7 - See comment on inertia brake couplers below
Note 8 - Electric brakes offered from March 2010, as an option to ensure fully legal braking in compliance with the Road Traffic Act also see *** below and link Special Note re Brakes and Towing
Note 9 - To be negotiated and invoiced separately, may fluctuate due fuel prices
Note 10 - Brake rod layout and service adjustment


Abbreviated Conditions of Sale
-------------------------------
All sales direct from factory
Prices are EX factory and subject to change without notice
Payment terms - 35% advance with order, negotiable, balance on delivery
Final payments to be by cleared funds
Any related costs to tow vehicle for owner's account
Normal delivery 4 to 8 weeks
One year limited warranty
Detailed conditions of sale available on request
Placement of order constitutes acceptance of conditions of sale
Customer's vehicles driven and stored at owner's risk
Risk passes to owner at notification of completion of vehicle

Features - All Sunpacer Horse Trailers
--------------------------------------
All steelwork chassis and frame hot dip galvanised for long life
Stallion bars standard equipment
Full height front door coupled with swinging front divider allows emergency front exit
Spring counterbalanced tailgate for easy handling
Double axles, 4 wheel inertia brakes (see note below)
Heavy duty glued down grooved mats, easily cleaned and hosed down
Heavy duty woven mats as an option, removable for cleaning and maint
Large front window
Ventilation top entry directs air over top of horses
Removable centrepost and divider converts trailer for alternative use
Chevron board included
Reflective tape included

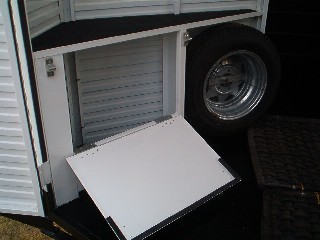

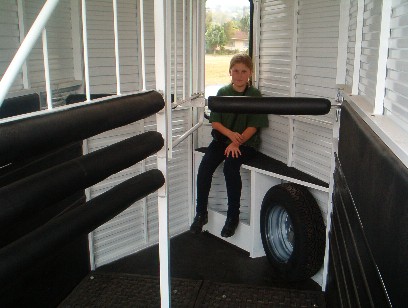

Groom's seat with open tack bin, lockable as an extra
Interior spare wheel mounting pad for greater security
Optional front unloading is light and easy to operate
Custom features available on request
Jumbo - large economical top quality trailer for warm bloods
High resale value due proven non-rusting qualities
We will design variations to customers individual specification

main dimensions **
description
std
hi roof
jumbo
3 berth
Length Overall
4525
4525
4725
4925
Width Overall
2100
2100
2300
2500
Height Overall
2730
2850
2850
2730
Length Inside
3380
3380
3520
3525
Width Body Inside
1600
1600
1800
2000
Height Inside
2280
2400
2400
2280
Berth Length starting at
1850
1850
1850
1850
Adjustable up to
2100
2100
2100
2100
Berth Width
667
667
767
573
Chain/breastbar height
1200
1200
1200
1200
Adjustable on request
   special arrangement for ponies
Floor Height Off Ground
450
450
450
450
    Ramp door closed height above floor
1500
1500
1500
1500
Tare Kg *
920
960
1040
1200
GVM Kg
2100
2100
2300
2300
Payload Kg
1180
1140
1260
1100
Brakes - 4 Wheel inertia see note ***
200x50
200x50
200x50
200x50
Tyres 185R14C CV2000, Rims 14" pro-white 5 stud


* Tare Mass would vary if options are applied
** Dimensions are given in good faith, in practice there may be some variations
750Kg GVM are supplied with inertia brake
*** Inertia brake couplers may or may not be legal with all towing vehicle combinations.
The statutes state that when GVM of trailer exceeds Tare mass of tow vehicle, servo brakes are required
Electric Brakes are now offered as a full sytem back to Note 7

-------------------------------
